- Base Spec Details
- High Spec Details
- CPU: 2x Intel Xeon E5 2698 V3 – 3,6Ghz 16 core per CPU (32 core total)
- RAM: 128GB DDR4 ECC 2133MHz ( 1TB MAX)
- STORAGE: 1TB M.2 SSD (MAX UP TO 10 x 3.5 INCH HOT SWAP DRIVES)
- POWER: 5400W (3x1800W) hot swap
- FANS: 6x 120MM 6500RPM HOT SWAP
- DIMENSIONS: 78×17.8x44CM / 6.9 x 16.5 x 30.7 inches
- NET WEIGHT: 30KG / 66 lbs
- PACKAGED WEIGHT: 36KG / 79 lbs
- CASE: 5U lid for taller GPUs (up to 44.5MM height for GPUs)
- SLOTS: 10 GPU PCIe x8
- NETWORK: 1GIG
- CABLES: 20 PCS of 25CM PCIe 18AWG 6+2P GPU Power Cables Included
- WARRANTY: 1 YEAR
- CPU: 2x Intel Xeon E5 2698 V3 – 3,6Ghz 16 core per CPU (32 core total)
- RAM: 256GB DDR4 ECC 2133MHz ( 1TB MAX)
- STORAGE: 2TB M.2 SSD (MAX UP TO 10 x 3.5 INCH HOT SWAP DRIVES)
- POWER: 5400W (3x1800W) hot swap
- FANS: 6x 120MM 6500RPM HOT SWAP
- DIMENSIONS: 78×17.8x44CM / 6.9 x 16.5 x 30.7 inches
- NET WEIGHT: 30KG / 66 lbs
- PACKAGED WEIGHT: 36KG / 79 lbs
- CASE: 5U lid for taller GPUs (up to 44.5MM height for GPUs)
- SLOTS: 10 GPU PCIe x8
- NETWORK: 1GIG
- CABLES: 20 PCS of 25CM PCIe 18AWG 6+2P GPU Power Cables Included
- WARRANTY: 1 YEAR

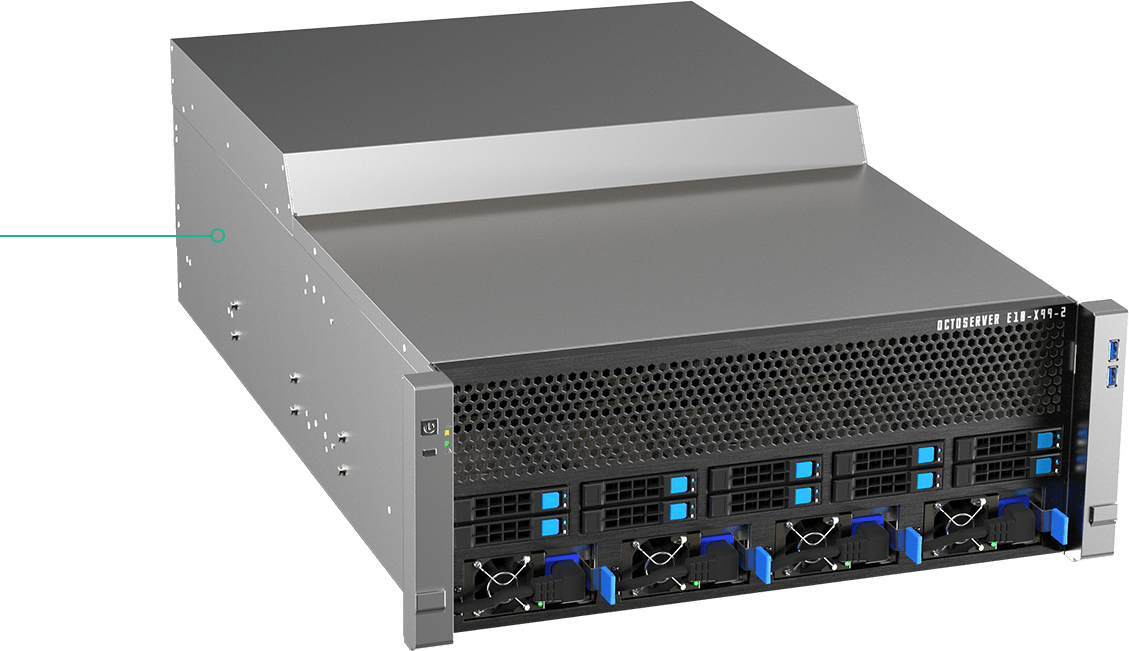

octoserver
e10-x99-2
The best “Bang For The Buck” 10 GPU enterprise grade HPC server. Perfect for GPU mining, AI, and PoUW.
Bulk Pricing
| QTY | Base Spec | High Spec |
|---|---|---|
| 1 | $1,995.00 | $2,195.00 |
| 5 | $1,945.00 | $2,145.00 |
| 10 | $1,895.00 | $2,095.00 |
| 50 | $1,875.00 | $2,075.00 |
| 100 | $1,845.00 | $2,045.00 |
| 200 | $1,825.00 | $2,025.00 |
Please contact us for more than 200 QTY units.
FULL ENTERPRISE GRADE
SERVER HARDWARE

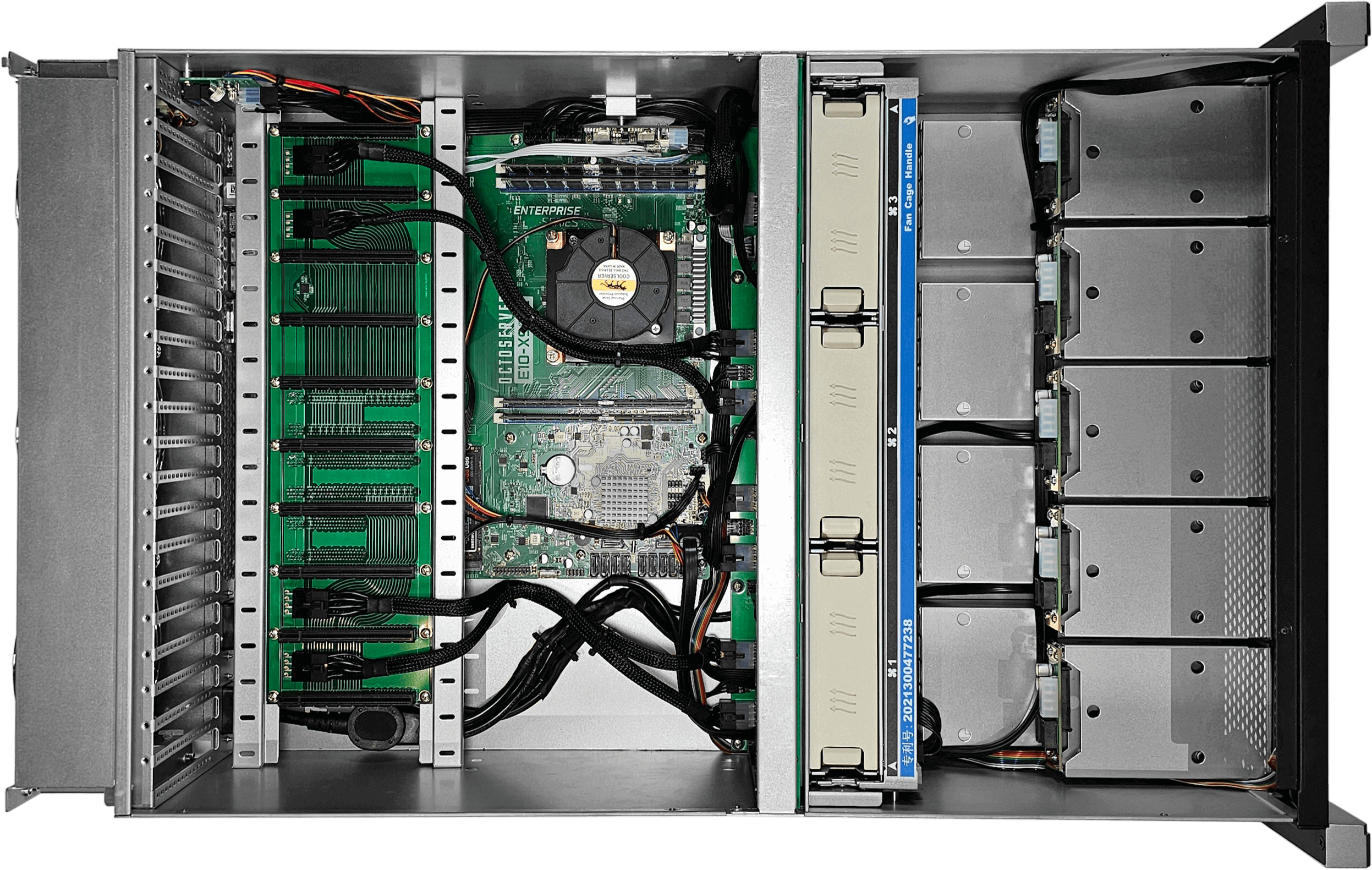

OCTOSERVER E10-X99-2 features a powerful GPU architecture that supports up to 10 dual-slot active or passive GPUs, with an optimized internal thermal layout.
up to
44 cpu cores
up to
1TB RAM
up to
10x Dual-slot PCIe 3.0 GPU/Device
Total Max Power
7200w (4x1800W)
10x Hot Swap Drive Bays
2.5'' SATA + NVME (Optional)
1x PCIe 3.0 x4 M.2 NVME SSD Upgrade to 3x 3.0PCIe 3.0 X4 M.2 NVME SSD (Optional)
6x Hot Swap Fans
6500RPM with Speed Control
3x RJ 45 by Intel
Dual 1G + IPMI
KVM + IPMI
Full Remote Management Features
dual cpu - built with
Intel xeon enterprise
cpus, up to 44 cores max
Spec up your server with Intel Xeon E5-2699 V4 CPUs for a
combined 44 cores and 88 threads.
We have used Intel Xeon E5 V3 / V4 series generations CPUs as they
are the most cost efficient enterprise grade CPU solution, especially
This is the best “bang for the buck” enterprise server solution!
10 gpu RACK MOUNT server
Maximum 10 GPUs running at PCIe 3.0 X8 link.
Maximum GPU length: 340MM
Maximum GPU Width: 40.64MM
Maximum GPU Height: 175MM FOR 5U LID,
132MM FOR 4U LID

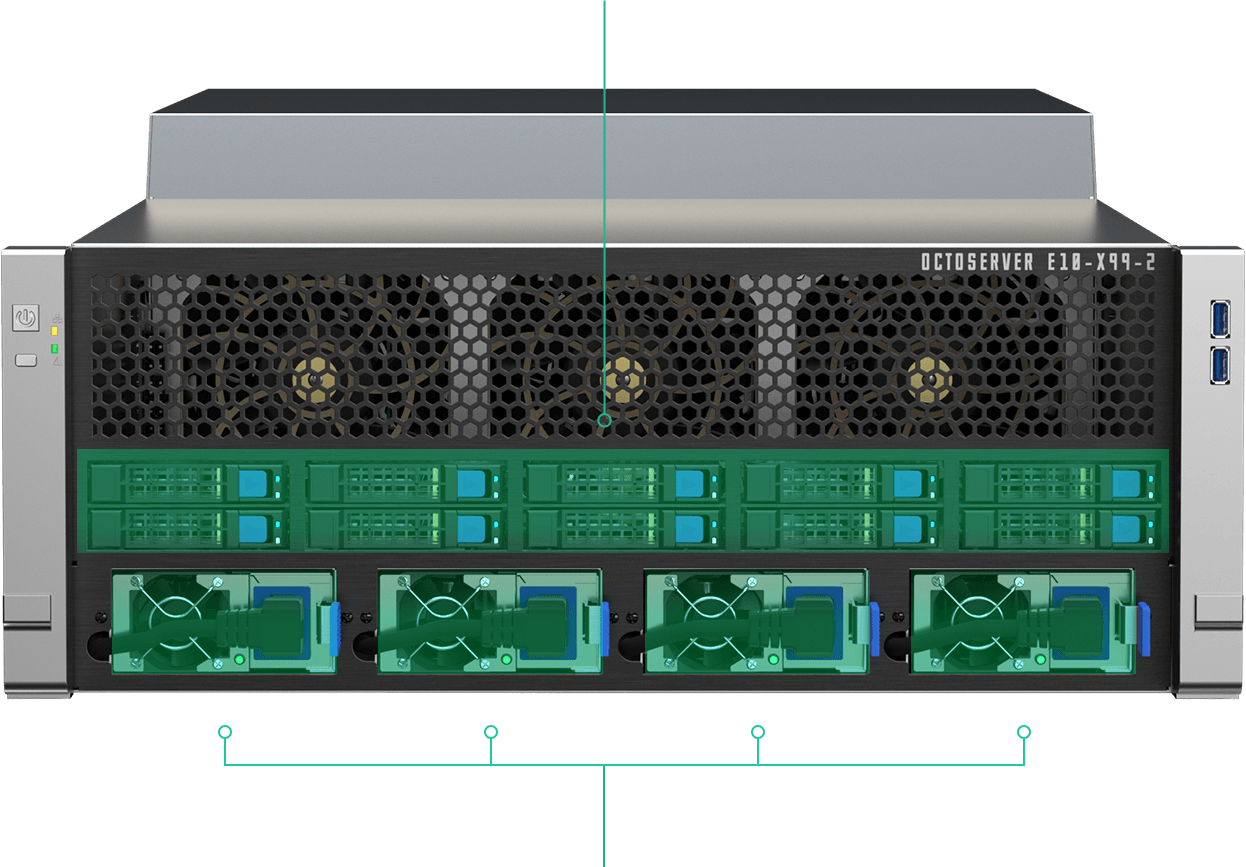

Hot- Swap
2.5 Storage bays
Fast and easy swapping of HDD’s or SSD’s with the
10 front mounted 2.5 inch drive storage bays. (Possible to upgrade 2x Drives to M.2 NVME)
Hot- Swap redundant
Power supplies
Hot swap and Redundant power supply configuration ensures for an efficient, reliable
and trouble free operation. Up to 7200W(4x1800W) maximum power output. Reverse airflow power supplies ensure that the PSUs run at an optimal temperature.
Compatible with cloud
compute, Ai, deep learning
and rendering
Put your GPUs to generate profit by renting them out on different global GPU marketplace platforms. Compatible with different global platforms like: Vast.AI, RNDR, CUDO Compute and other similar platforms.
Perfect for mining next
generation pow coins like
Flux, and Aleo
Perfect for mining next generation GPU mineable coins that require powerful enterprise grade servers with more PCIe bandwidth, RAM, and enterprise CPUs.
REMOTE Server MANAGEMENT
Octoserver offers free-of-charge server management applications via small processor (BMC) built on the server.
Provides:
- Server health monitoring
- Remote troubleshooting
- Resource utilization monitoring
- Reduction in server downtimes
- Single server management
- Feature-rich and easy to use browser-based interface
- Integration of 3rd party applications
- Automatic recording function
- SAS / RAID controller monitoring function
- Multiple server management platform
- Compatible w/ IPMI
Configurable
oled display
Customisable front panel OLED screen integration that displays all the major data from the rig, mining algorithm, hashrate, IP, MAC Address, power consumption, bad shares, fan speed, temperature.
Server rail Compatible
Standard 19′ inch server sliding rails included.
*Rails not pictured

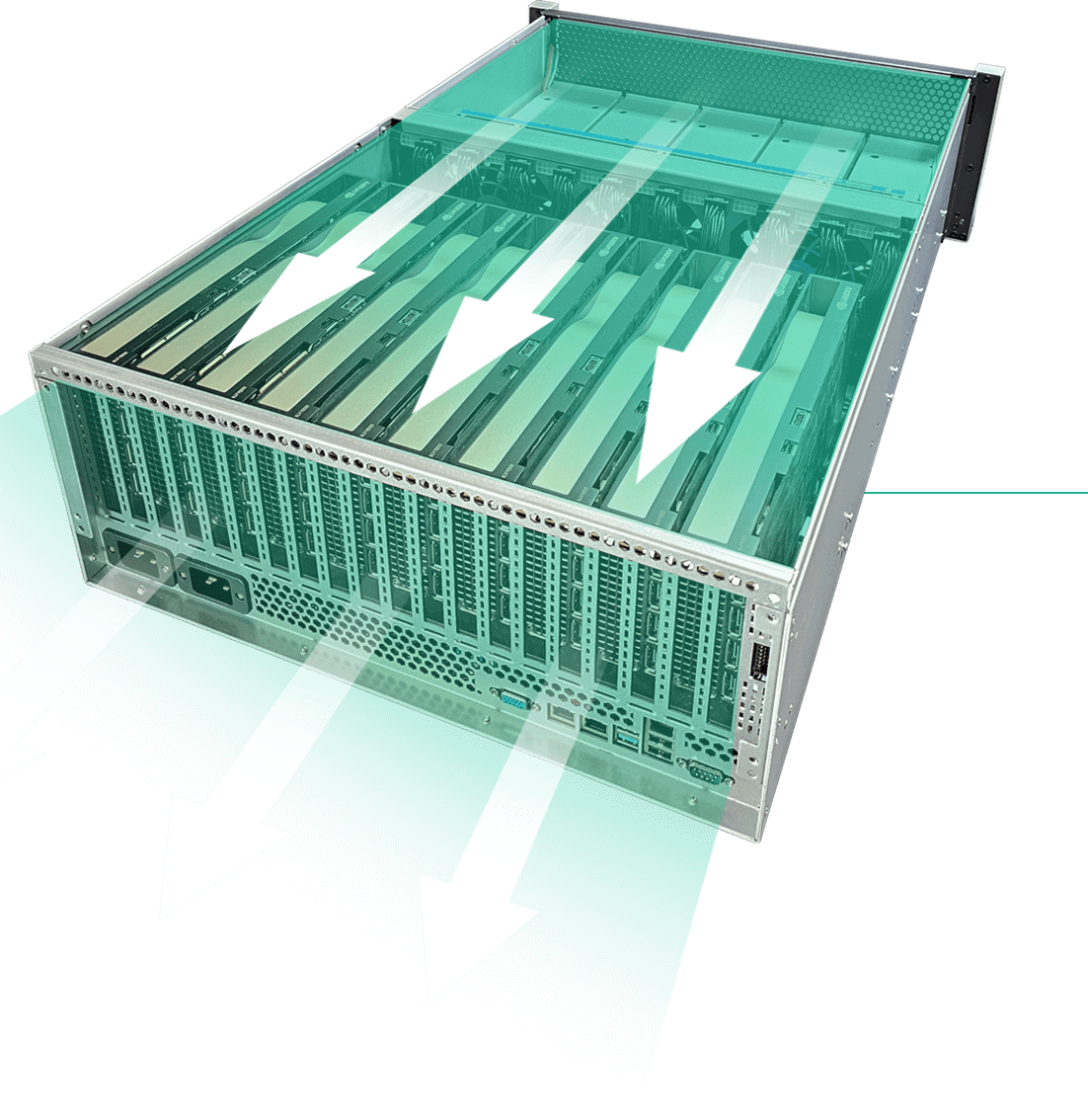

powerful and
efficient cooling
Your hardware will always stay cool thanks to the use of six heavy-duty 120mm 6500RPM hot-swap fans . Helping to prevent overheating and
maximizing performance.

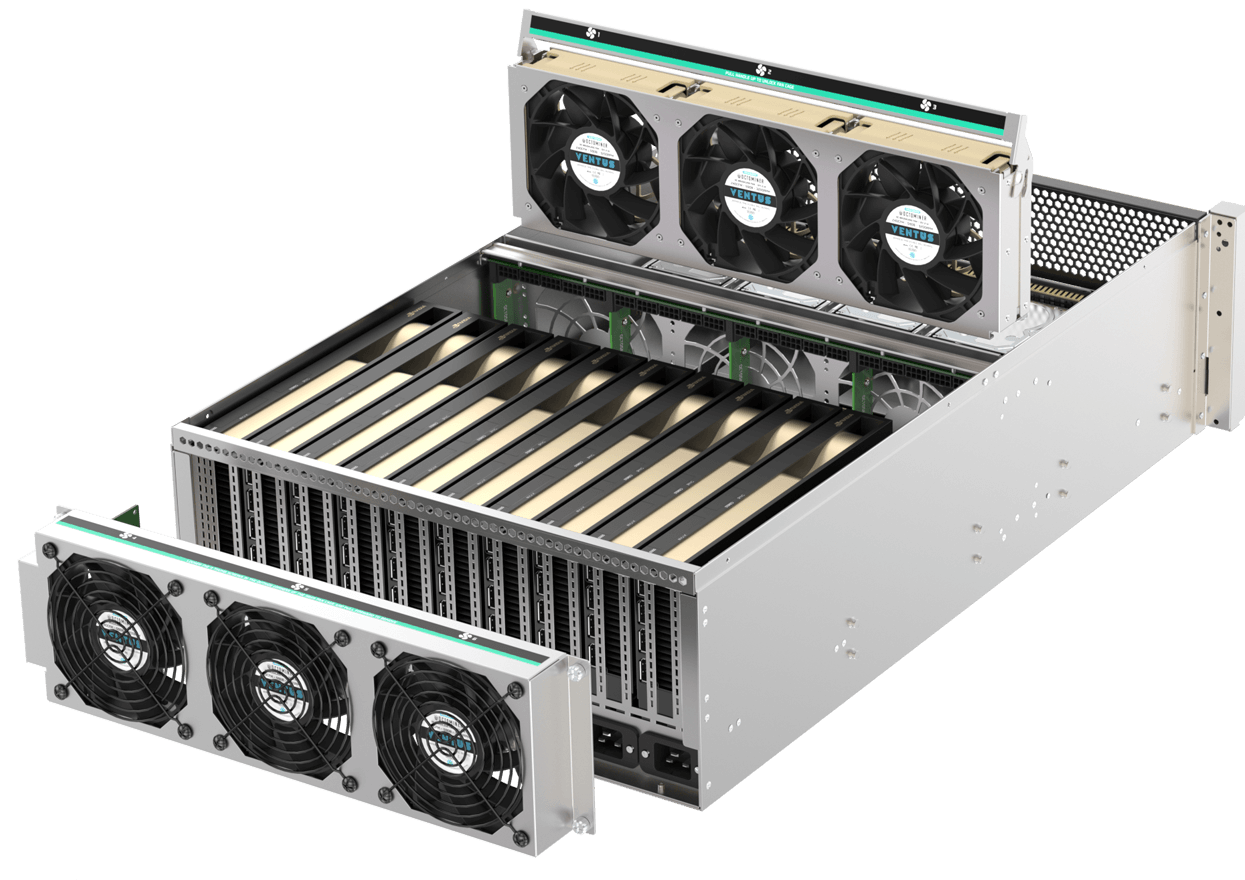

6 Hot swap fans REAR & CENTRE
We have designed our chassis with with a total of 6 hot swap fans, 3 6500RPM 120MM hot swap fans in the centre and 3 in the rear, pulling in cool air from the front and pushing out hot air from the rear. Both the front and rear hot-swap fan modules are easily removable for servicing and can be replaced with just a few seconds.

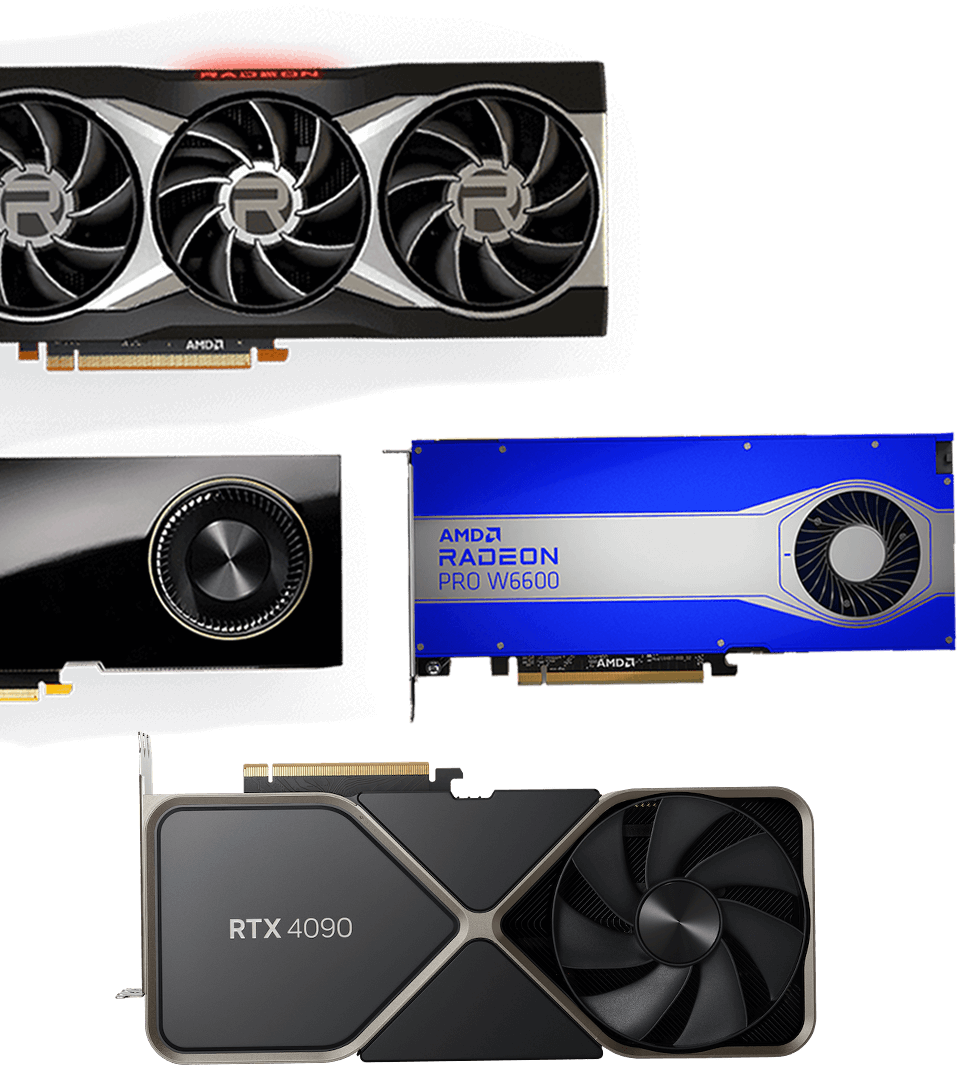

Compatible with all
AMD
Compatible with all AMD and NVIDIA PCIe GPUs that physically fit into the chassis. Maximum GPU thickness of 40.64MM(Dual Slot) and maximum GPU length of 340MM supported.
1 year
International
warranty
1 Year global warranty coverage for parts.
Global spare parts stock in US/EU/HK warehouses.
On-Site warranty support service available for large scale customers in Europe and the United States.
Specifications
- Systems Processor
- GPU Card Support Spec
- PCIe Expansion Slot
- External Drive Bay/ Storage
- System Memory
- Power Supply
- CPU: Dual Socket 2011(FCLGA2011-3) Dual Compatible with Intel Xeon E5 V3
- Max Cores: 44 Cores Combined
- Chipset: System in Chip
- Thermal Design Power: 300w
- Max(W): Max. 450w per Card
- Supported GPUs: All Nvidea & AMD GPUs
- Max GPU Dimensions: Length-300mm, Thickness- 70m, Height- 165cm
- Thermal Design Power: 300w
- PCIe 3.0: 8x PCIe 3.0 x 16 (x8 Electrical Link) 70mm GPU to GPU Spacing
- Front Side Drive Bay: 2 Hot Swap 3.5″ Drive Bays
- Front Side Backplane: 2x Passive SATA Backplanes
- Motherboard Storage: 1x M.2(PCIe 3.0 x 4) Supports 22110/2280 Form Factor
- Max System Memory: 96GB (32GB+32GB+16GB+16GB)
- Supported DIMM Quantity: 2+2 DIMM slots
- Supported RAM Type: DDR4 288-pin RDIMM
- Max. Capacity per DIMM: RDIMM: up to 32GB*
- Max. DIMM Frequency: RDIMM up to 2300 MHz
- Voltage: Voltage 1.2V
- Type: 2+1 Common Slot
- Output(W): 1200W, 1400W, 1800W, 2000W Options
- Max(W): 6000W per system
- Efficiency: 80-PLUS Platinum
- AC Input:Lowline: 100-127V, Highline: 200-240V
- *Optional: 277V UL Certified Upgradeoltage 1.2V
Specifications
| SYSTEMS PROCESSOR: | |
|---|---|
| CPU: | Dual Socket 2011 (FCLGA2011-3) Dual Compatible with Intel Xeon E5 V3 |
| Max Cores: | 44 Cores Combined Maximum |
| Chipset: | System in Chip |
| Thermal Design Power: | 300w |
| PCIE EXPANSION SLOT: | |
|---|---|
| PCIe 3.0: | 8X PICe 3.0 x 16 (x8 Electrical Link) 40.64mm GPU to GPU Spacing |
| System Memory: | |
|---|---|
| Max System Memory: | 1024GB (32GB x8) |
| Supported DIMM Quantity: | 4+4 DIMM slots |
| Supported RAM Type: | DDR4 288-pin RDIMM |
| Max. Capacity per DIMM: | RDIMM: up to 128GB* |
| Max. DIMM Frequency: | RDIMM up to 2300 MHz |
| Voltage: | Voltage 1.2v |
| GPU CARD SUPPORT SPEC: | |
|---|---|
| Max(W): | Max. 600w per Card |
| Supported GPUs: | All Nvidia & AMD PCIe GPUs |
| Max GPU Dimensions: | Length- 340mm, Thickness- 40.64mm, Height- 175mm |
| EXTERNAL DRIVE BAY/ STORAGE: | |
|---|---|
| Front Side Drive Bay: | 10 Hot-Swap 2.5” SATA3 Drive Bays |
| Front Side Backplane: | 2x Passive SATA Backplanes |
| Motherboard Storage: | 1x M.2 (PCIe3.0x4) Suports 22110/2280 Form Factor |
| Power Supply: | |
|---|---|
| Type: | 3+1 Common Slot |
| Output(W): | 1800W Per Power Supply |
| Max(W): | 7200W per system (Maximum) |
| Efficiency: | 80-PLUS Platinum |
| AC Input: | 180-250V |
| *Optional: | 277V UL Certified Upgrade / 100-120V Upgrade |
