The Only Smart
GPU MINING RIG
OCTOMINER X8ULTRA PLUS
SCROLL DOWN FOR BULK PRICING
Minimum order quantity is 5 rigs for X8ULTRA+
- Intel G1840 CPU, 2.8Ghz Dual Core (Possible to upgrade to 4 core i7)
- 3000W total power supply (4x750W Hot Swap Server Power Supplies)
- 8GB DDR3 RAM (16GB MAX) (SODIMM MODULES)
- 60GB SSD (expand up to 3x SATA DRIVE)
- OCTOMINER CHASSIS WITH 4 HIGH POWER 140x38MM COOLING FANS (HIGH AIRFLOW, PWM SPEED CONTROL)
- OCTOMINER HARDWARE WATCHDOG & SMART FAN CONTROLLER (automatic fan speed control, automatic system reboot, status LED’s, OLED display with system info)
- BOSCH ENVIRONMENTAL SENSOR (Air pressure, temperature and humidity readings on both inlet and temperature for exhaust air)
- HIVE OS PRE INSTALLED

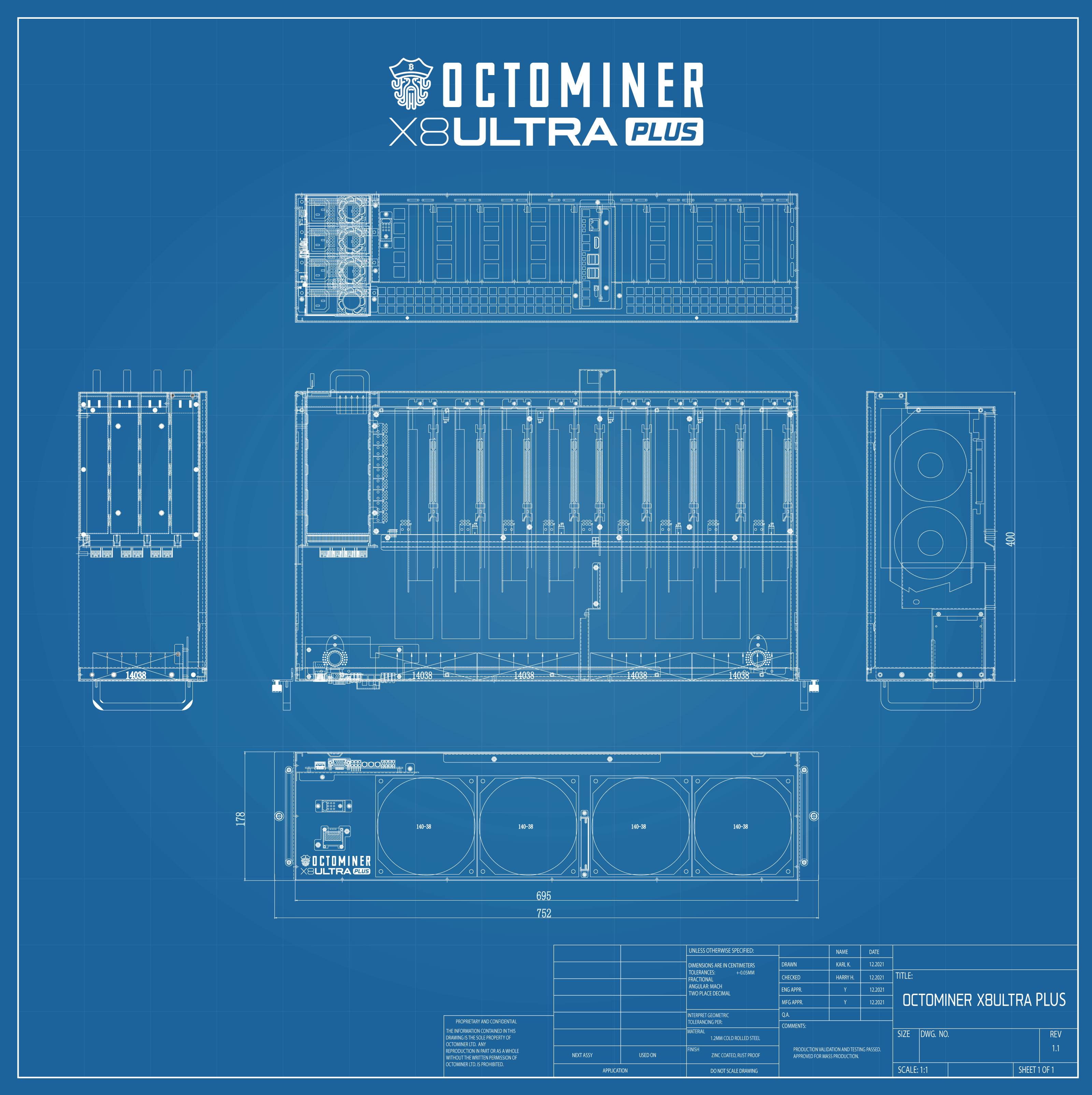

- DIMENSIONS 70x40x17.8CM
- WEIGHT 17KG
- 1 YEAR INTERNATIONAL WARRANTY ON ALL PARTS!
SHIPPING AND TARIFFS MAY APPLY TO EACH UNIT ORDERD
GPU's Not Included
Out of stock
The Only Smart
GPU MINING RIG
Next Gen Mining Rig
Built for Efficiency
Ethereum Hashrate
1850W - 821MH/S
Power consumption may vary up to 3% depending on exact GPUs used and miner settings. 1850W Power Reading is actual accurate reading from the wall. Our smart power supply system provides accurate total power consumption readings from the rig.
Designed For Large Scale
Blockchain Deployments
3000W POWER OUTPUT
- Full 3000W Power delivery on any input voltage (100-240V)
- Power supply output is not de-rated at 100-120V input voltage!
- Very quiet operation when used under 2200W
18AWG Cables
- 24X PCIE 6+2P Connectors
- 3x Plugs per GPU on the High Spec model
- 3x Dedicated 18AWG power cables per GPU
- Works with any GPU
Spacing
- 65.00mm GPU To GPU. Perfect for even the BIGGEST GPUs!
Compatible with All
- Triple Slot Width GPU’s. Up to 325MM Length GPU’s
Enterprise Grade Power Delivery
Octominer Smart Power
Supply telemtry features:
- Monitor PSU input and exhaust temperature
- Monitor and control PSU fan speed
- Monitor PSU 12V output voltage
- Monitor PSU AC input voltage
- Monitor power consumption
Smart power supply telemtry readout example:
*All 4 Power Supplies have their individual READOUT.
Above example shows READOUT for single PSU.

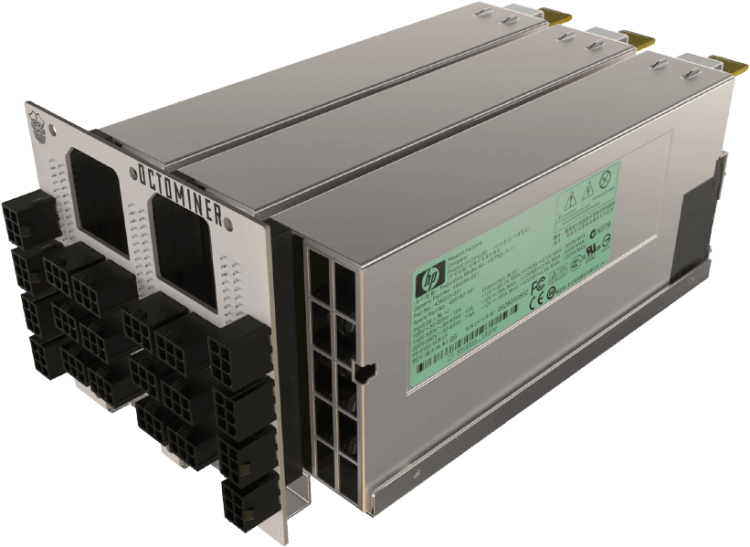

94% Efficiency 3000W enterprise grade hoT swap power supply (4x750W)
*Example shown here is for 3 PSU's, actual rig will come with 4 PSU's.
Certified Power Supplies
*Octominer X8ULTRA PLUS uses only UL listed and fully CE certified power supplies.
COMPATIBLE With
RTX 3090
- Maximum 350W Per GPU
- 3x 6+2P PCIe Power Plugs Per GPU
- 1 Year International warranty
140x38MM Fans, High Airflow & Efficiency
High Performance & long lifespan fans
- Octominer ventus fans with hight static pressure and CFM for increased airflow and optimal cooling performance.
- Heavy duty ROHS certified plastic blades and housing.
- Very quiet at 40-60% fan speed (1700-2100RPM)
- Optimized PCB and motor design (Up to 20% more efficient).
- Improved reliability and heat dissipation due to thick copper PCB.
- Reliable Japanese NMB double ball bearings for increased lifespan.
- High precision and efficiency PWM modulation speed control.
- 140X38MM size provides higher airflow and efficiency and also lower noise.
HIGH QUALITY
POWER DELIVERY
140x38MM Fans, High Airflow & Efficiency
High Performance & long lifespan fans
- Octominer ventus fans with hight static pressure and CFM for increased airflow and optimal cooling performance.
- Heavy duty ROHS certified plastic blades and housing.
- Optimized PCB and motor design (Up to 20% more efficient).
- Improved reliability and heat dissipation due to thick copper PCB.
- Reliable Japanese NMB double ball bearings for increased lifespan.
- High precision and efficiency PWM modulation speed control.
Environmental Data
Temperature - humidity - air pressure
Take full control of your environment. Precise and fast Environmental Data helps keep your hardware safe from extreme conditions and helps maintain optimal cooling settings for the case fans.
Save on electricity and keep your hardware cool!

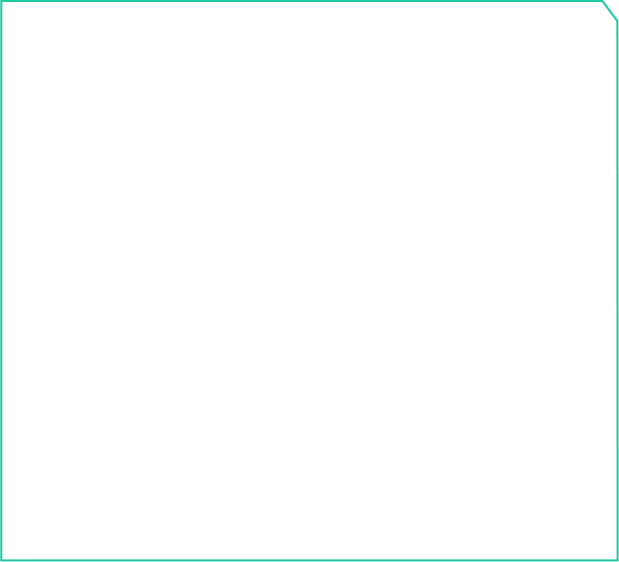

Environmental Sensor technical Specifications
configurable OLED Display
Customisable front panel OLED screen integration that displays all the major data from the rig, mining algorithm, hashrate, IP, MAC Address, power consumption, bad shares, fan speed, temperature.
Smart hardware watchdog & fan controller
Full integration with any mining OS allows the smart fan controller & hardware watchdog to automatically regulate the case fan speed based on the environmental readings to keep the GPU temperatures in the optimal zone. It is possible to choose the “optimal temperature” range in the mining OS and set the minimum RPM and lock the fans into a set RPM using the manual adjustment. The hardware watchdog will reboot a frozen rig automatically after the microcontroller detects that the rig has frozen and needs a reboots.
Smart Configurable LED’s
Let our smart hardware do the work for you!
Full hardware &
Software Integration
One of a kind software and hardware integration help boost profits, minimize rig downtime, Save on electricity, and in general reduces the time and manpower needed for large farm Management
- Full control over case fan speed
- Automatic case fan rpm adjustment based on gpu core and memory temperatures.
- Full power supply telemetry readout and integration
- Accurate power consumption and voltage readings
- Debug led (4 different color led’s on the front of the rig) To help quickly and efficiently find, detect and troubleshoot problematic rigs.
- Full enviromental data readout per each rig. Input temperature, exhaust, humidity and exhaust temperature.
- Octominer smart hardware watchdog integration does automatic reboots on frozen and crashed rigs.
- Front panel oled screen integration that displays all the major data from the rig. Hashrate, ip, mac address, power consumption, bad shares, fan speed and temperature.
Smart Feature Integration with all the major mining os’s
Integration example
for x12Ultra
- Octominer autofan will regulat the case input fan speed to keep the GPU core and memory temperatures in the Optimal range. Possible to sent the minimum and maximum speed limiters.
- Monitor the individual speed of all 5 case fans. Detect if any of them have failed or are out of spec.
- Monitor accurate power draw from the wall. Octominer rigs in Hive Os display the actual power draw from the wall, not the estimated power draw of GPUs combined.
Featured on the official amd blockchain web
For bulk orders, please contact us for pricing
Orders over 100 rigs are eligible for
up to 20% discount
All Products Come with
AMD Blockchain solution partner
THE SMARTEST AND MOST RELIABLE GPU MINING RIG ON THE MARKET. BUILT FOR EFFICIENCY AND EASE OF MANAGEMENT. FULL SOFTWARE & HARDWARE INTEGRATION WITH ANY MINING OS (DEBUG LED’s, HARDWARE WATCHDOG FOR AUTO REBOOT ON FROZEN RIGS, SMART FAN SPEED CONTROLLER WHICH ADJUSTS THE CASE FAN SPEED TO KEEP GPUs AT OPTIMAL TEMPERATURES). UP TO 10% LOWER POWER CONSUMPTION COMPARED TO OTHER GPU MINING RIGS. FEATURED ON THE OFFICIAL AMD BLOCKCHAIN WEBSITE: https://www.amd.com/en/technologies/blockchain
